Experiment with different colors, finishes, and panels on your building before you decide.
What Is Aluminum Wes-Trix® Siding?
Wes-Trix® WT1 features a simple rib pattern that creates a clean, modern look with a lasting appeal. It’s available in more than 100 colors and finishes, giving you plenty of design flexibility.
The boxy and raised corrugations create a strong and durable panel. The design of the corrugations significantly reduce the chance of oil canning. This makes it easier to install when compared to other rusted wall panels that have concealed fasteners.
Wes-Trix® WT1 can be installed vertically or horizontally. It has a tongue and groove connection.
Benefits of Wes-Trix Aluminum Siding:
- No Maintenance – No need to stain, paint, or seal
- Limited 40 year paint warranty
- Fire resistant
- Termite and pest resistant
- Cost about the same as wood
Quick Links
Aluminum Wes-Trix® Siding

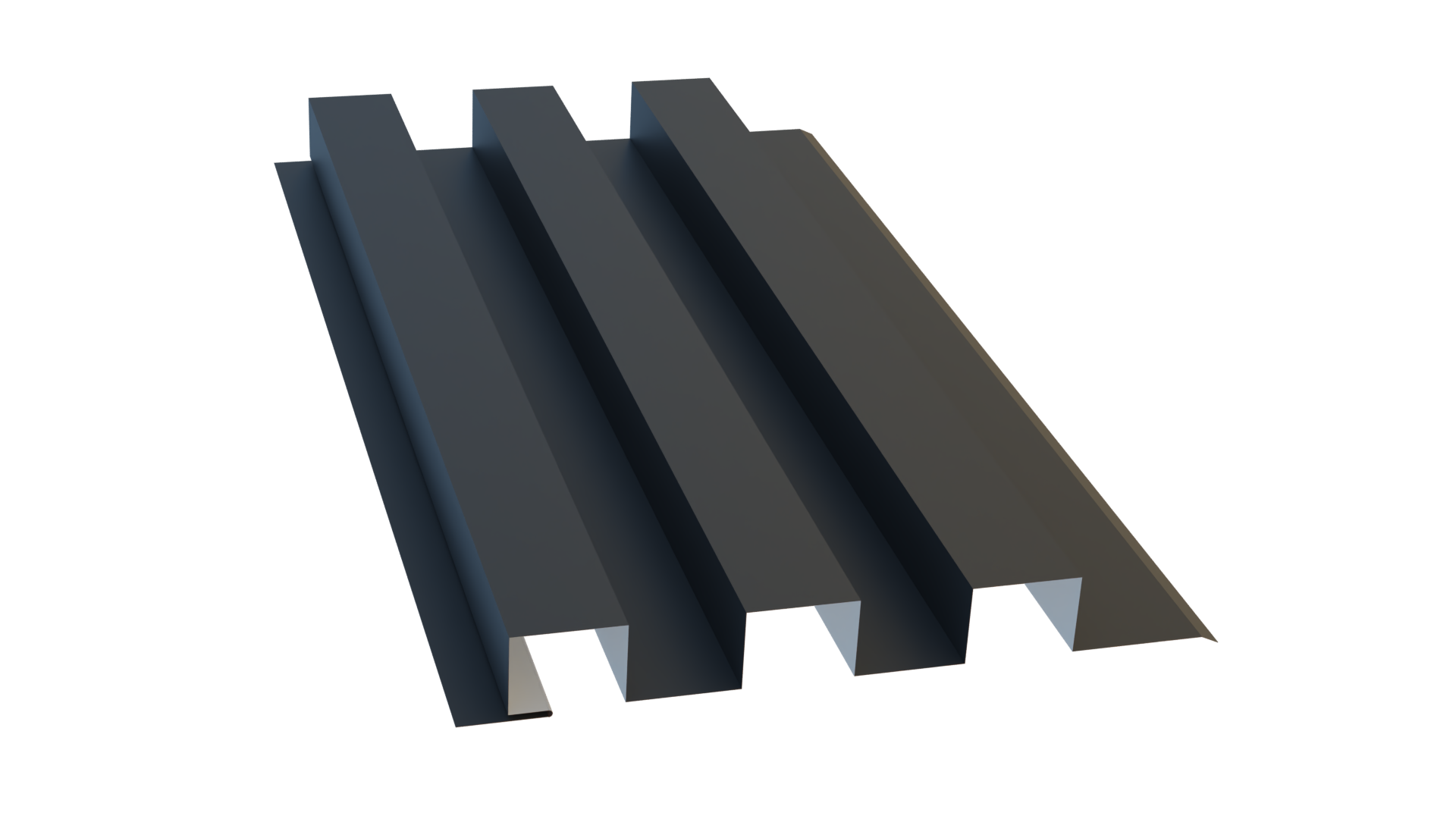

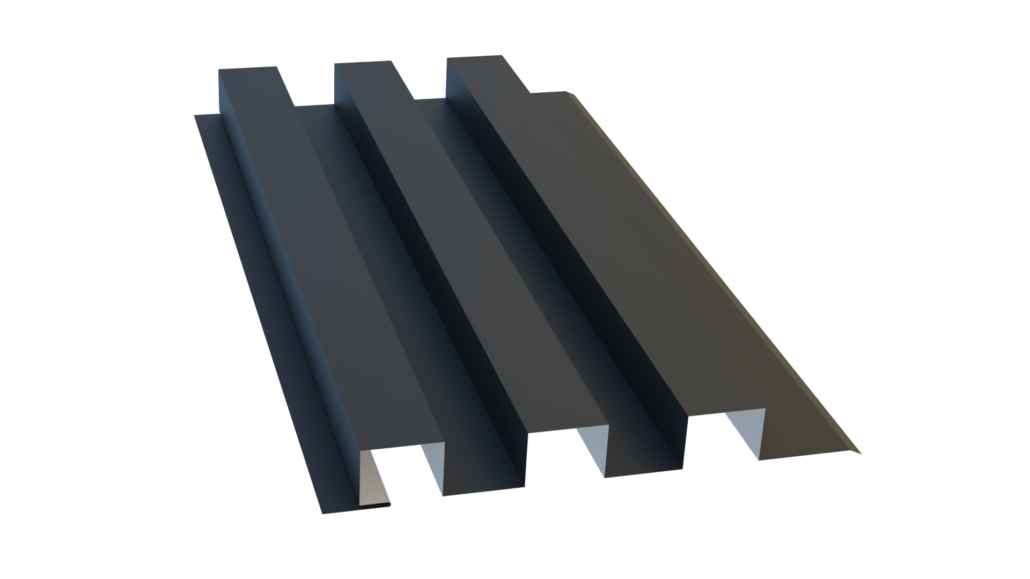

Wes-Trix® WT1 is a rigid aluminum wall panel with concealed fasteners. It’s a symmetrical panel that has a boxy appearance. This adds depth and texture. West-Trix WT1 will look stunning as an accent wall or as a feature wall on your next commercial or residential project.
Product Images

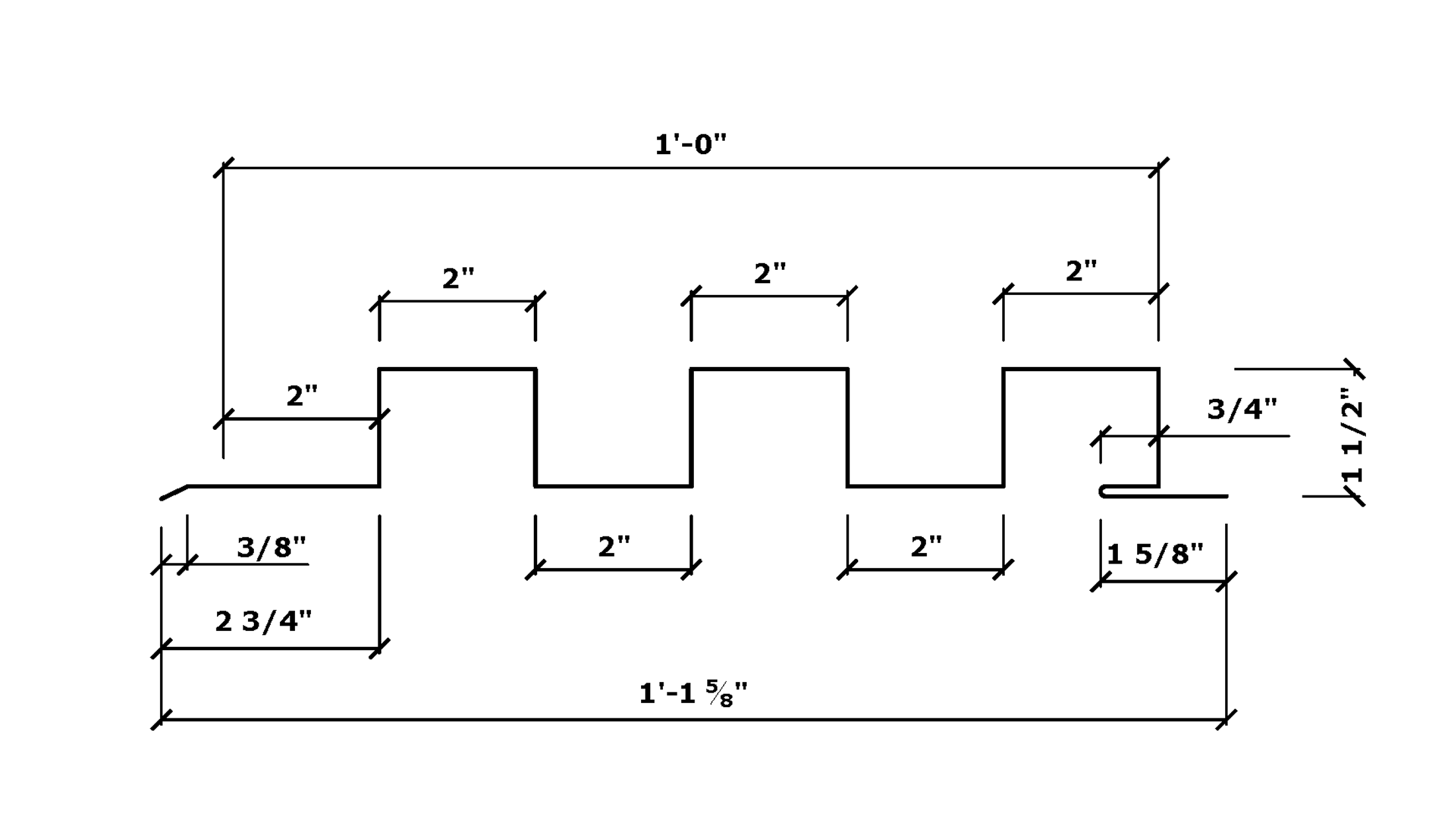

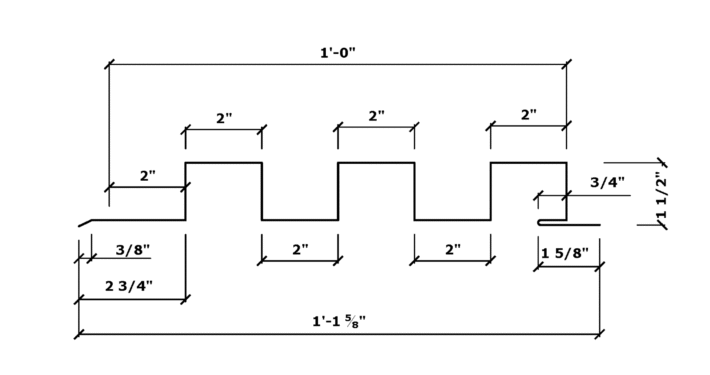

Dimensions
Material Type:
Wes-Trix Metal Siding
Thickness of Aluminum:
- .032 Aluminum
Fasteners:
Concealed Fasteners
Product Data
Panel Width: 12″ Coverage
Rib Height: 1.5″
Rib Distance (Pitch): 4″
Panel Length: 1′ to 31’10”
Material Type: Wes-Trix® WT1
Available Gauges: 16, 18, 20, 22, 24, 26
Fastening Type: Concealed Fasteners
Product Documents
Wes-Trix Aluminum Siding Colors
There are two color charts to choose from:
- Standard Colors: These colors are in stock and are available quickly. No minimum order quantities.
- Special Order Colors: Requires a 3-4 week lead time. 5000lbs minimum.
Product Documents
Standard Colors
Our standard Polyvinylidene Difluoride (PVDF), has a chemical composition that gives it high mechanical strength and superior abrasion resistance. The tough engineering thermoplastic has increased durability, excellent chemical resistance to halogen and acids that can cause degradation. The surface of PVDF panels is able to handle high temperatures and extensive ultraviolet ray exposure while resisting fading and chalking for longer than SMP painted panels.
By using aluminum roofing and siding panels in PVDF paint, you will have vibrant and attractive painted aluminum panels for longer than any other paint system.
Special Order Colors
We also offer special ordered colors. These corrugated metal siding colors are not in stock. They are supplied on a job by job basis. If you see a color that you like, there are some things that you should be aware of.
- 500 Square Foot Minimum
- Longer Lead Times
- Cost An Additional 10% to 25% When Compared To Standard Colors
We recommend that you start by looking at all of our standard metal siding colors. You can find the links below on this page. They cost less and can be manufactured quicker. If you need something different, these colors below might be your solution to finding the perfect color for your metal roof or metal siding.
